N55 Dorch Stage 1 HPFP Upgrade
Our Stage 2 kit is a bigger, better version of our Stage 1 kit for some of the more extreme applications. This is a complete plug-and-play kit to support 650whp and also allow for full E85 up to 500whp (these numbers can vary quite a bit depending on tuning strategy, fuel type, etc.). There’s no cutting, no bending, no crimping, etc. This kit drops right in with full control from the DME, just like the OEM pump. All of the safety and sophistication of the stock DME remain in place.
N55 HPFP Flow Capacities
The table below serves as a reference for maximum fuel flow in cubic centimeters per camshaft revolution for various N55 fuel pump options. These calculations are based on the N55 cam lobe. Each engine will have varying fuel flow capacities depending on the lift and number of lobes on the camshaft.
|Pump Model||Fuel Flow (cc/rev)|
|HDP5 (Stock N55)||0.837|
|HDP5 Evo (Stock B58)||0.897|
|HDP6 (Stock B58TU)||1.107|
|Dorch Engineering Stage 1||1.221|
|Dorch Engineering Stage 2||1.465|
Software changes are required to run this pump. If using MHD or Bootmod3, simply check the box for our pump upgrade when flashing. Otherwise, please send your .BIN file to email@example.com for the appropriate software changes. This change is free of charge for all of our customers.

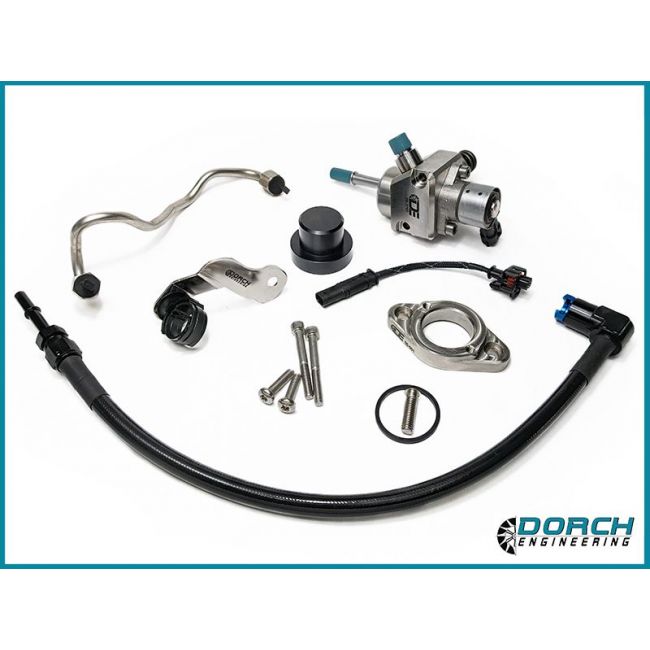

- HPFP w/ Hardware
- High Pressure Line
- Low Pressure Line
- Low Pressure Line Bracket
- Plug-n-Play Adapter Harness
F87 – M2
F20/21 – 135i
F22 – 235i, 235xi
F30 – 335i, 335xi
F32 – 435i, 435xi
F10 – 535i, 535xi
E92 – 335i (ONLY 2012+ models originally equipped with Bosch HPFP)
E82 – 135i (ONLY 2012+ models originally equipped with Bosch HPFP)
NOTE: If you have an N55 equipped vehicle that is not listed, please contact us at firstname.lastname@example.org for fitment information.
