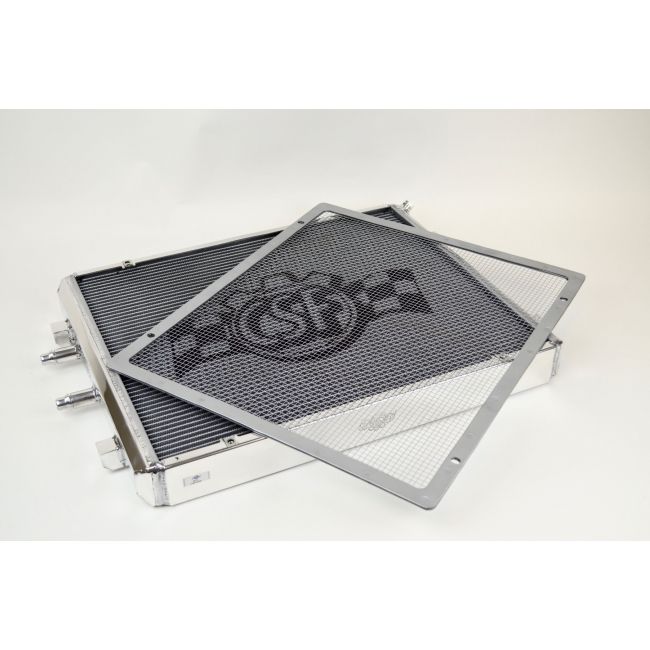

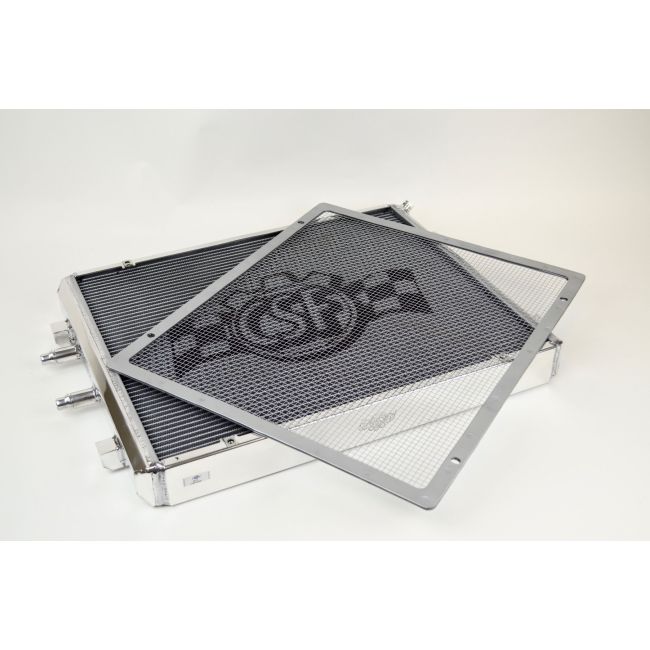

F8x Front Mount Heat Exchanger

2-row 42mm core (dual core) featuring CSF’s exclusive B-tube technology.
Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact.
Dual-pass flow structure allows the coolant to flow across the core of the radiator 2 times before exiting the radiator for the lowest outlet temperature possible (OEM style design).
CNC machined, OEM style “quick-connect” inlet/outlet connections.
CNC machined, OEM style mounting brackets & fittings for superb fit and durability.
Includes removable aluminum rock guard.
All-aluminum race style drain plug.
1 hour “mirror finish” hand polish.
“Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including “quick-connect” hoses, mounting brackets, OEM X-brace, and all air ducting/shrouding.
CSF #8075 – 45 row design – no modifications necessary.
CSF #8075R – 50 row ultimate race-spec design (limited availability).
Requires some modification including trimming to bottom side of upper core support.
Life-time warranty.
